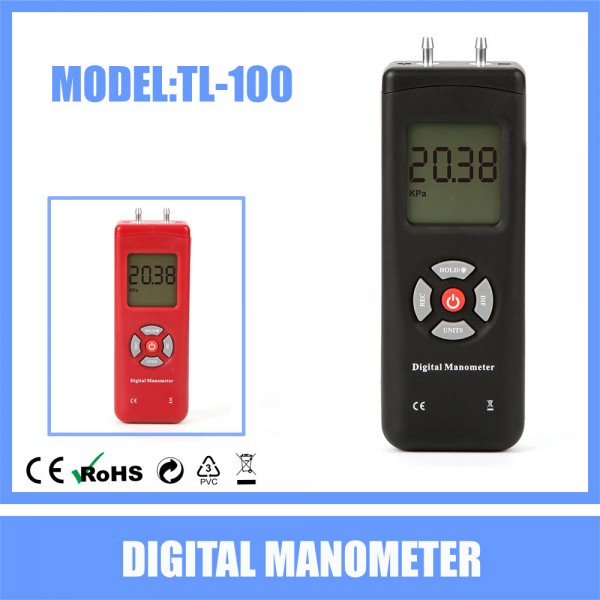

Digital Manometer&Differential Pressure Gauge

Measure the air pressure of pipe system

  • Description
  • Global Tab

Features:

1.11 selectable units of Measurement

2.Differential pressure measurement

3.Max / minimum / Average聽reading record function

4.Data hold function

5.Large LCD with backlight

6.Zeroing, offset, and data compensation

7.Low battery alarm

8.Auto power off settup function

9.Over range indicator



Specifications:

1.Pressure Range:卤2psi

2.Accuracy:卤0.3% FSO (at 25oC)

3.Repeatability:卤0.2% (Max卤0.5%FSO)

4.Linearity/Hysteresis:卤0.29% FSO

5.Response Time:0.5sec

6.Over 聽Range Indicator:Hi

7.Under Range Indicator:Lo

8.Operating Conditions:0 to 50oC(32 to 122oF)

9.Storage Conditions:-10 to 60oC (14 to 140oF)

10.Power supply:9V battery

11.Dimension165 X 80 X 45mm

11.Weight:220g(battery included)

Function Range Resolution Function Range Resolution
kPa 13.78 0.01 inHg 4.07 0.001
Psi 2 0.001 mmHg 103.4 0.1
Kgfcm2 0.140 0.001 InH2O 55.40 0.01
Ozin2 32.00 0.01 FtH2O 4.613 0.001
Bar 0.137 0.001 cmH2O 140.6 0.1
Mbar 137.8 0.1
