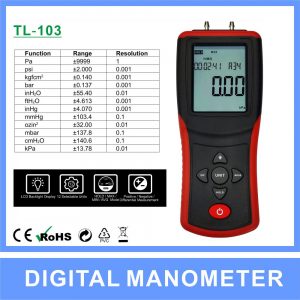

Digital manometer
Features:
- 12selectable units of Measurement
- Pressure difference measurement
- .Maximum/ minimum/ average data mode
- Data hold function
- .Large LCD with backlight
- Zeroing, and data compensation
- Low battery alarm
- Automatic power off function
- Over range indicator:Hi,Lo
- Data storage function with a time stamp
- USB for power supply.
Specifications:
Pressure Range ±2.000 Psi
Units of measure Pa, Psi, kgfcm2, bar, inH2O, ftH2O, inHg, mmHg, ozin2, mbar, cmH2O, kPa,
Accuracy ±0.3% FSO (at 25oC)
Repeatability ±0.2% (Max±0.5%FSO)
Linearity/Hysteresis ±0.29% FSO
Data Storage 99 groups
Response Time 0.5s
Out of Range Indicator Hi or Lo
Automatic power off conditions No operation for 10 mins
Operating Conditions 0 to 50oC(32 to 122oF)
Storage Conditions -10 to 60oC (14 to 140oF)
Power supply 1.5V x 3pcs batteries
Dimension 165 X 70 X 33mm
Weight 150g(without batteries)
Function Range Resolution Function Range Resolution kPa ±13.78 0.01 inHg ±4.070 0.001 Psi ±2.000 0.001 mmHg ±103.4 0.1 Kgfcm2 ±0.140 0.001 InH2O ±55.40 0.01 Ozin2 ±32.00 0.01 FtH2O ±4.613 0.001 Bar ±0.137 0.001 cmH2O ±140.6 0.1 Mbar ±137.8 0.1 Pa ±9999 1 Read MoreQuick View -
