• Digital manometer

    Features:

    1. 12selectable units of Measurement
    2. Pressure difference measurement
    3. .Maximum/ minimum/ average data mode
    4. Data hold function
    5. .Large LCD with backlight
    6. Zeroing, and data compensation
    7. Low battery alarm
    8. Automatic power off function
    9. Over range indicator:Hi,Lo
    10. Data storage function with a time stamp
    11. USB for power supply.



    Specifications:

    Pressure Range ±2.000 Psi

    Units of measure  Pa, Psi, kgfcm2, bar, inH2O, ftH2O, inHg, mmHg, ozin2, mbar, cmH2O, kPa,

    Accuracy ±0.3% FSO (at 25oC)

    Repeatability ±0.2% (Max±0.5%FSO)

    Linearity/Hysteresis ±0.29% FSO

    Data Storage  99 groups

    Response Time  0.5s

    Out of Range Indicator  Hi or Lo

    Automatic power off conditions  No operation for 10 mins

    Operating Conditions 0 to 50oC(32 to 122oF)

    Storage Conditions -10 to 60oC (14 to 140oF)

    Power supply 1.5V x 3pcs batteries

    Dimension 165 X 70 X 33mm

    Weight 150g(without batteries)

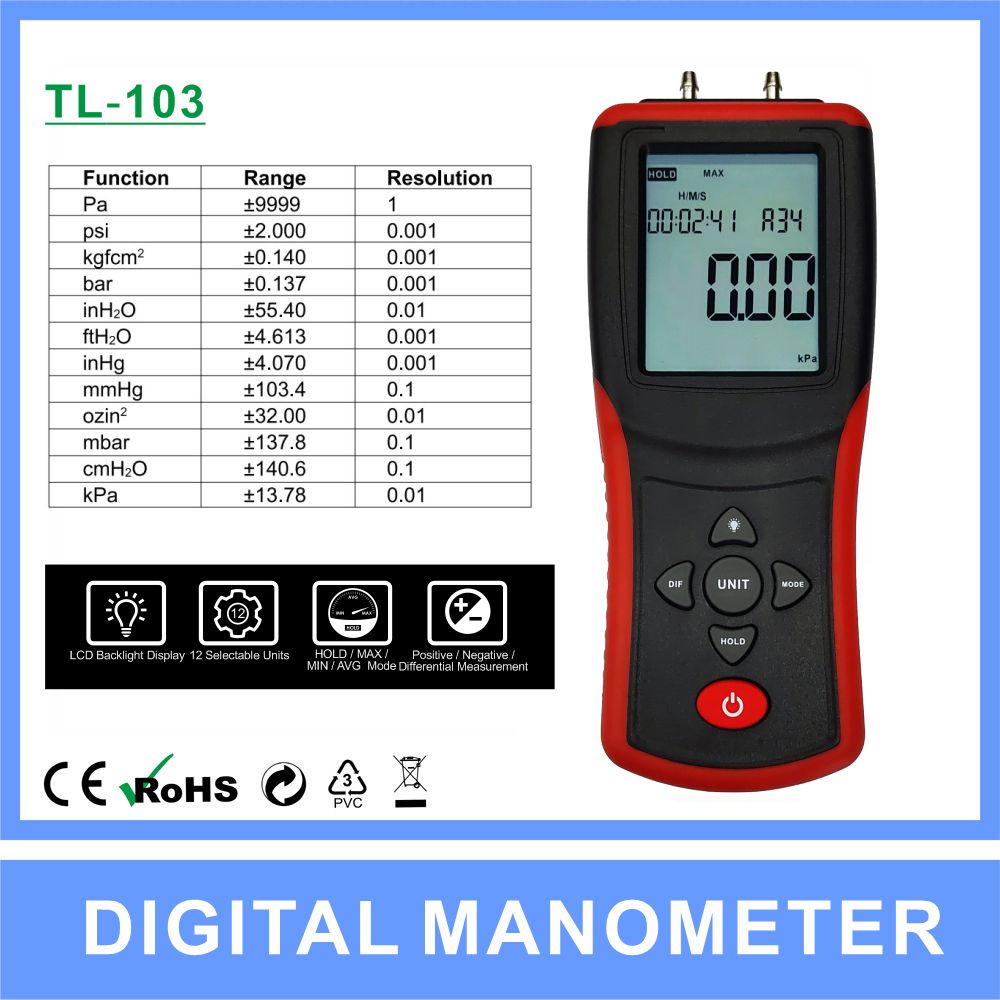

    Function Range Resolution Function Range Resolution
    kPa ±13.78 0.01 inHg ±4.070 0.001
    Psi ±2.000 0.001 mmHg ±103.4 0.1
    Kgfcm2 ±0.140 0.001 InH2O ±55.40 0.01
    Ozin2 ±32.00 0.01 FtH2O ±4.613 0.001
    Bar ±0.137 0.001 cmH2O ±140.6 0.1
    Mbar ±137.8 0.1 Pa ±9999 1



  • Digital Manometer&Differential Pressure Gauge

    Measure the air pressure of pipe system

  • Digital Manometer&Differential Pressure Gauge

    Measure the air pressure of pipe system

  • Digital Manometer&Differential Pressure Gauge

    Measure the air pressure of pipe system
