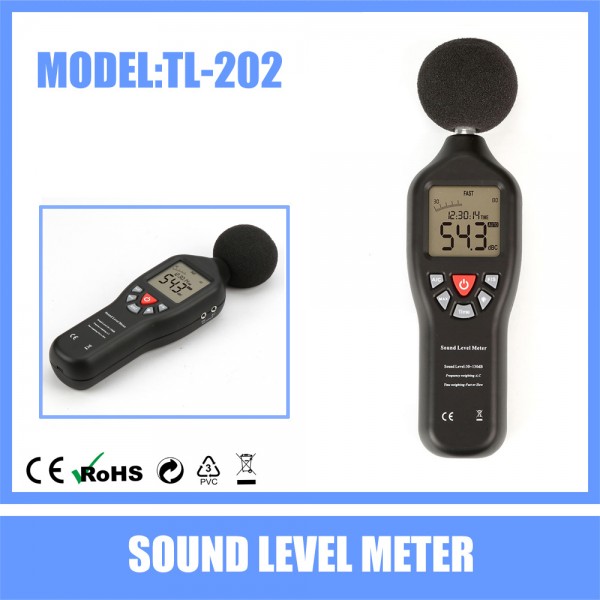

Sound level meter

Our Decibel Meter is compact and easy to use while providing you accurate readings in a greater range than similar inexpensive sound meters on the market!Our sound meter can read between 30dBA~130dBa, while reducing the effects of wind noise to produce more accurate readings. The sound meter provides readings within +/-1.5dBA providing some of the most accurate results!e

  • Description
  • Global Tab

Features:

  • Sound level Range:30 to 130dB(Auto Ranging)
  • Frequency weighting: A/C
  • Fast/Slow time weighting selection
  • Max Hold function
  • High accuracy
  • Bar graph display
  • AC/DC function
  • White Backlight
  • Over / Under indicator
  • Time and date display
  • Auto-off function setup
  • Low Battery Alert
  • Tripod Mount (Tripod not included)
  • Softcase, USB Lead(power line), manual,AC/DC line, Batteries included
  • CE Certified & RoHS Compliant



Specifications:

Standard applied:聽IEC651 type 2, ANSI S1.4 type 2

Calibration sound source:聽94dB @ 1kHz

Measurement range:聽30~130dBA

Accuracy:+1.5dB(reference sound pressure standard,94dB@1KHz)

Frequency response:聽31.5~8.5KHz

Resolution:聽0.1dB

Frequency weighting:聽A/C

Analogy bar graph:聽2dB/1 Bar graph

Display update time:聽2 times/second (FAST), 1 time/second (SLOW)

AC signal output:聽4Vrms/ full barograph, output impedance is approx 600 ohm

DC signal output:聽33mV/dB

Sampling rate:聽FAST (125ms聽/ SLOW (1s)

Power supply:聽6V (4pcs AA Size 1.5V battery)

Dimension:245*70*45mm

Weight:approx240g(battery included)
